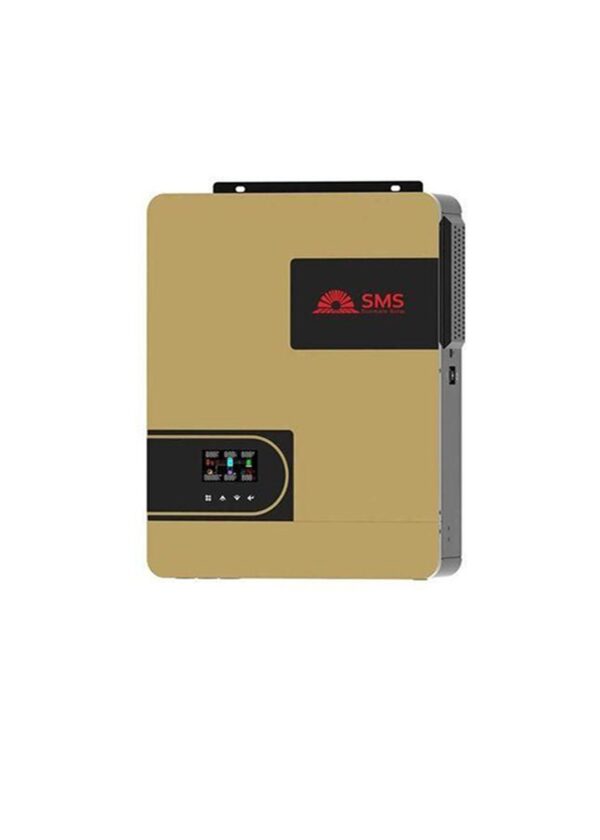

Sunmate SMS 2KW-12V Hybrid Solar inverter (MPPT 80A)

• Rated Power: 2000W
• Maximum Solar Charging Current: 80A
Grid/AC Output (Utility Output):
• Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
• Feed-in Grid Voltage Range: 195 Vac to 253 Vac
• Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
• Nominal Output Current: 15.7A
• Nominal Output Current: 15.7A
• Power Factor Range: Greater than 0.99
• Maximum Conversion Efficiency (DC/AC): 97%
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• AC Input (Grid Charging):
• Nominal Operating Voltage: 230Vac
• Maximum Input Current: 30A
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• PV Input (Solar Input):
• Nominal Operating Voltage: 240Vdc
• Maximum PV Voltage (Vmax PV): 500Vdc
• PV Input Voltage Range: 60Vdc to 450Vdc
• Maximum Input Current (Imax PV): 27A
• Full Load MPPT Range: 240Vdc to 450Vdc
